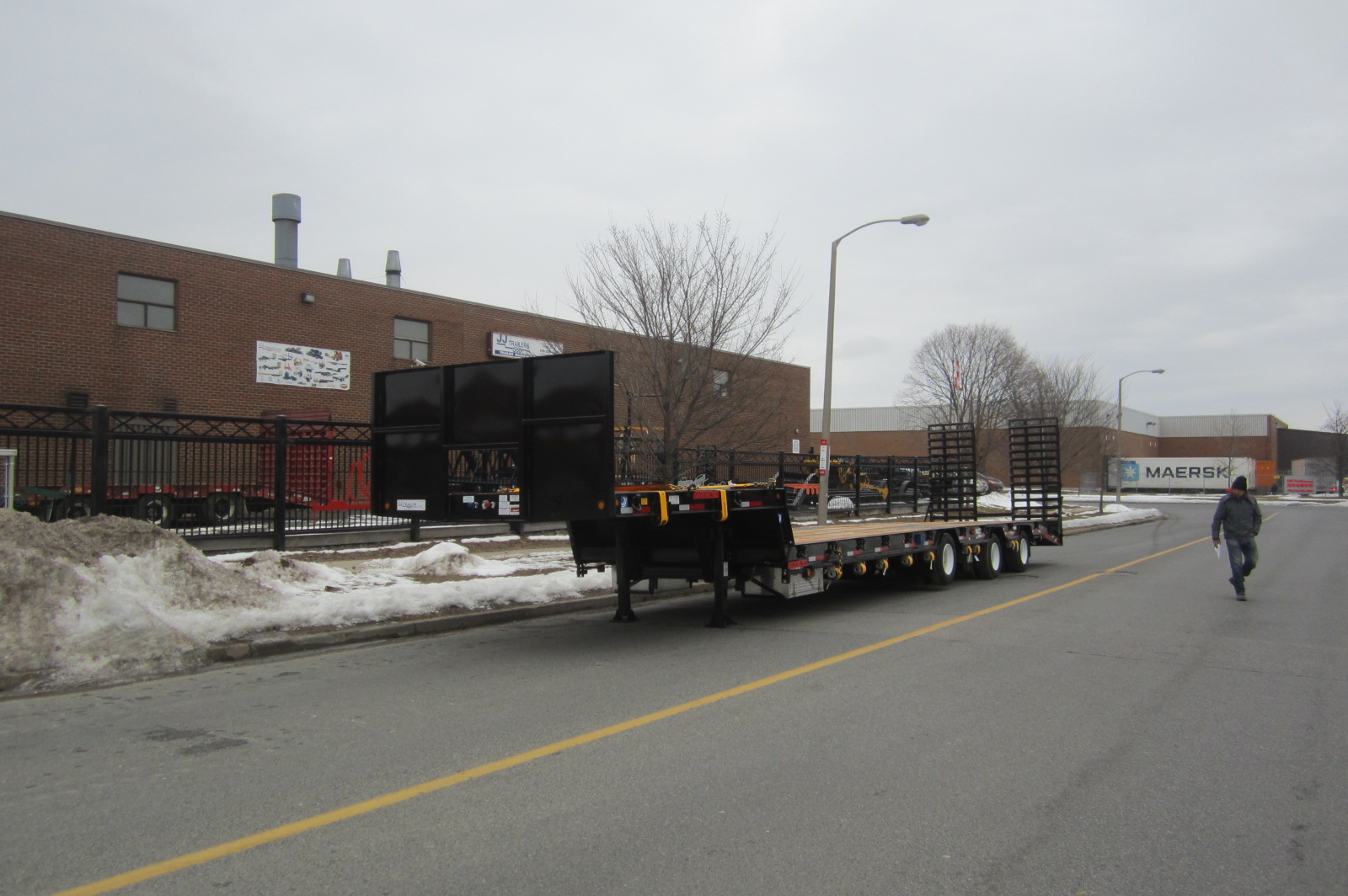

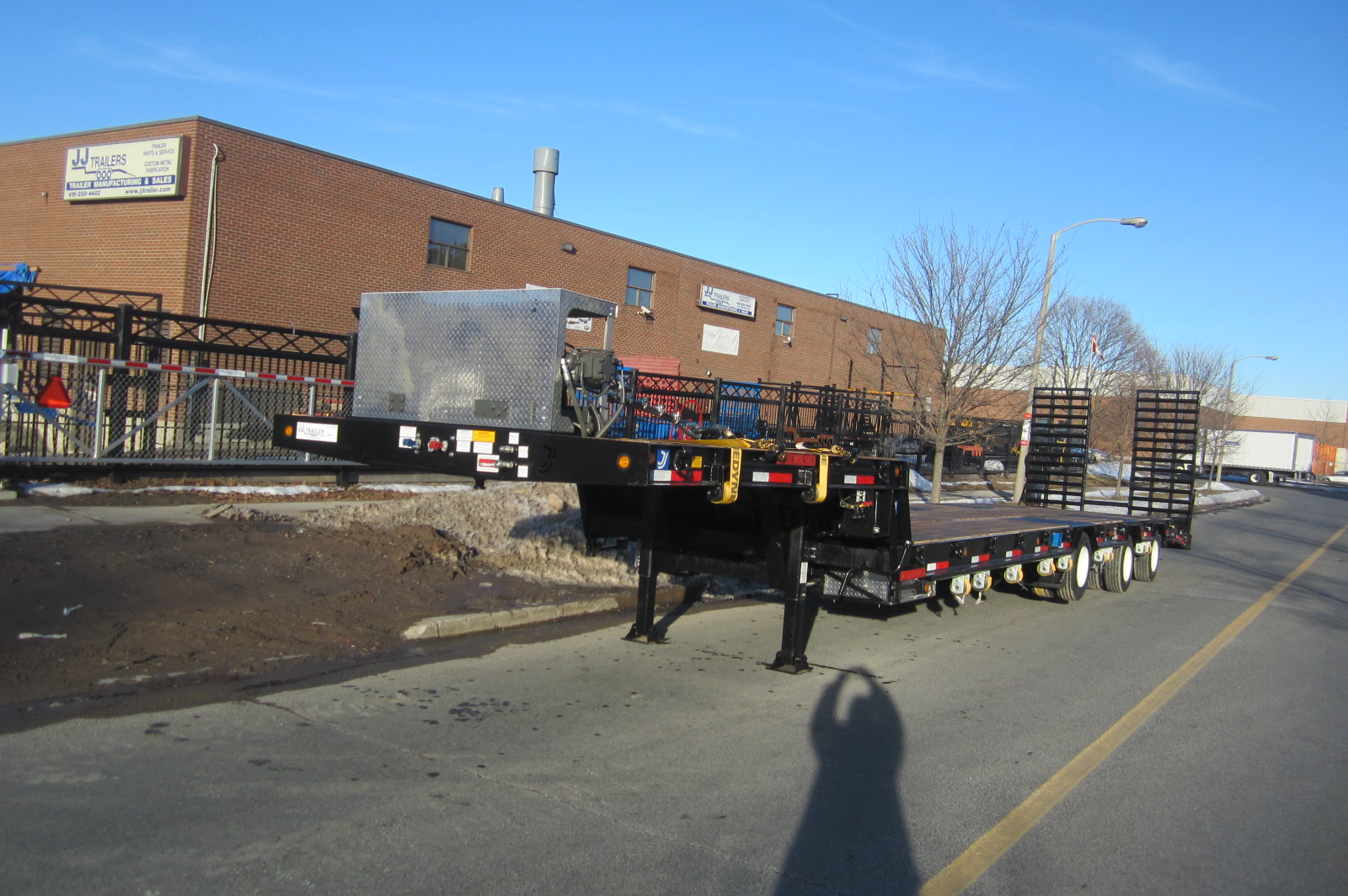

SD-2+1E
Gallery
Specs & Upgrades
- 48' O/A Length; 11' Upper, 31' Lower Deck, 6' Beavertail
Tridem IMT/Dexter Axles on 30K Heavy Duty JJ-Fabricated Air-Ride Suspension
Front Axle Equipped with Air-Lift and Self-Steer Function
24" Drop, 36" Deck Height, 102" Wide
1" D-Rings Every 3' Along Lower Deck Sides; Upper Deck with Cargo Style Stake Pockets and 3 Recessed Winches
QT-100 Fabricated Main Beams Built with Positive Camber

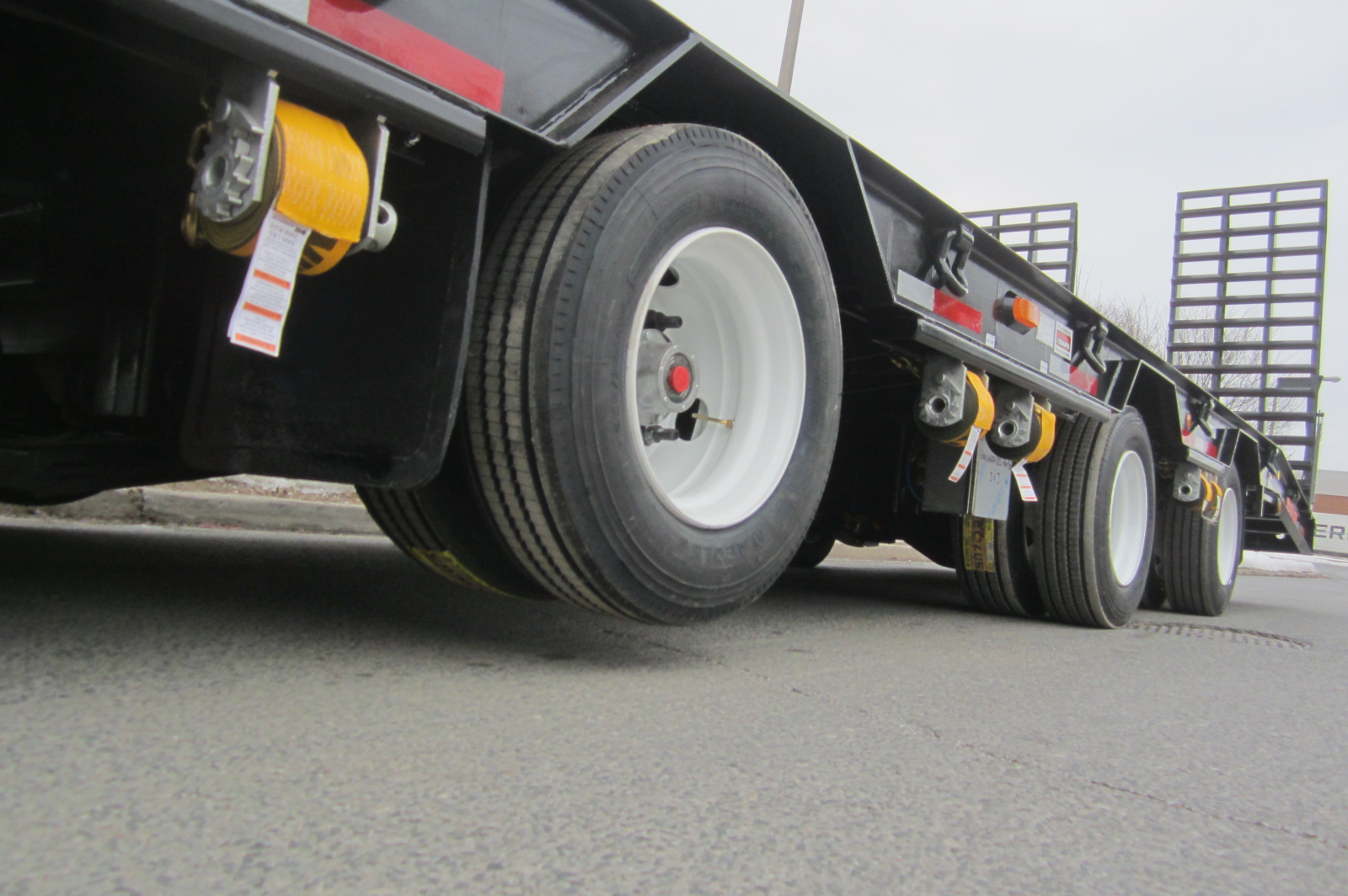

Riding on 235/75R17.5" Dual Wheels
Heavy Checkerplate Fenders Above Wheels
Dual-Airbag Air-Operated Rear Wood or Steel Cleat Ramps
Fully Sandblasted Frame, Epoxy Primed, and Polyurethane Gloss Black Topcoat
- 53’ Long Trailer with 36’ Lower Deck
8’ Beavertail (53’ Trailer only)
9’, 9’6” or 10’ Wide Deck
Manual Upper Deck Ramps
Air-Operated, Recessed Upper Deck Ramps
Steel Cleat Beavertail
Axle Grease Bank
Under Deck Aluminum Storage Toolbox
Flip-Out Outriggers
Any Colour Paint
Galvanized Frame
Tire Inflation System
20K or 30K Front-Mounted Winch
Sliding Winch Track Along Lower Deck with Opposite-Side Tie-Down Bar
Aluminum Rims
