YR-1
Gallery
Specs & Upgrades
- Self-Loading Reel-Lifting Functionality
Dual Hydraulic lifting cylinders, operated by a remote-controlled battery and pump system
Spring-Loaded Safety Locking Features

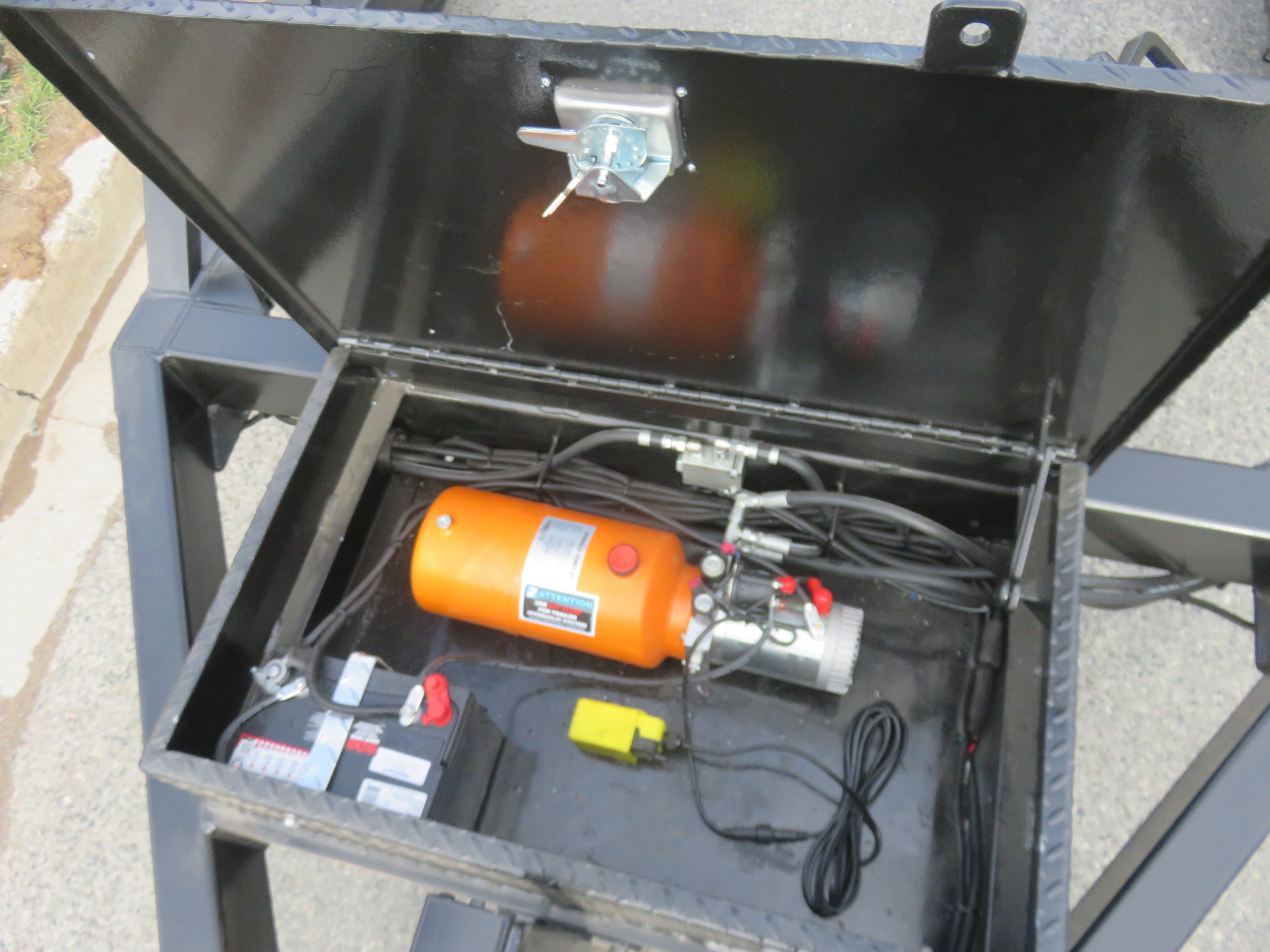

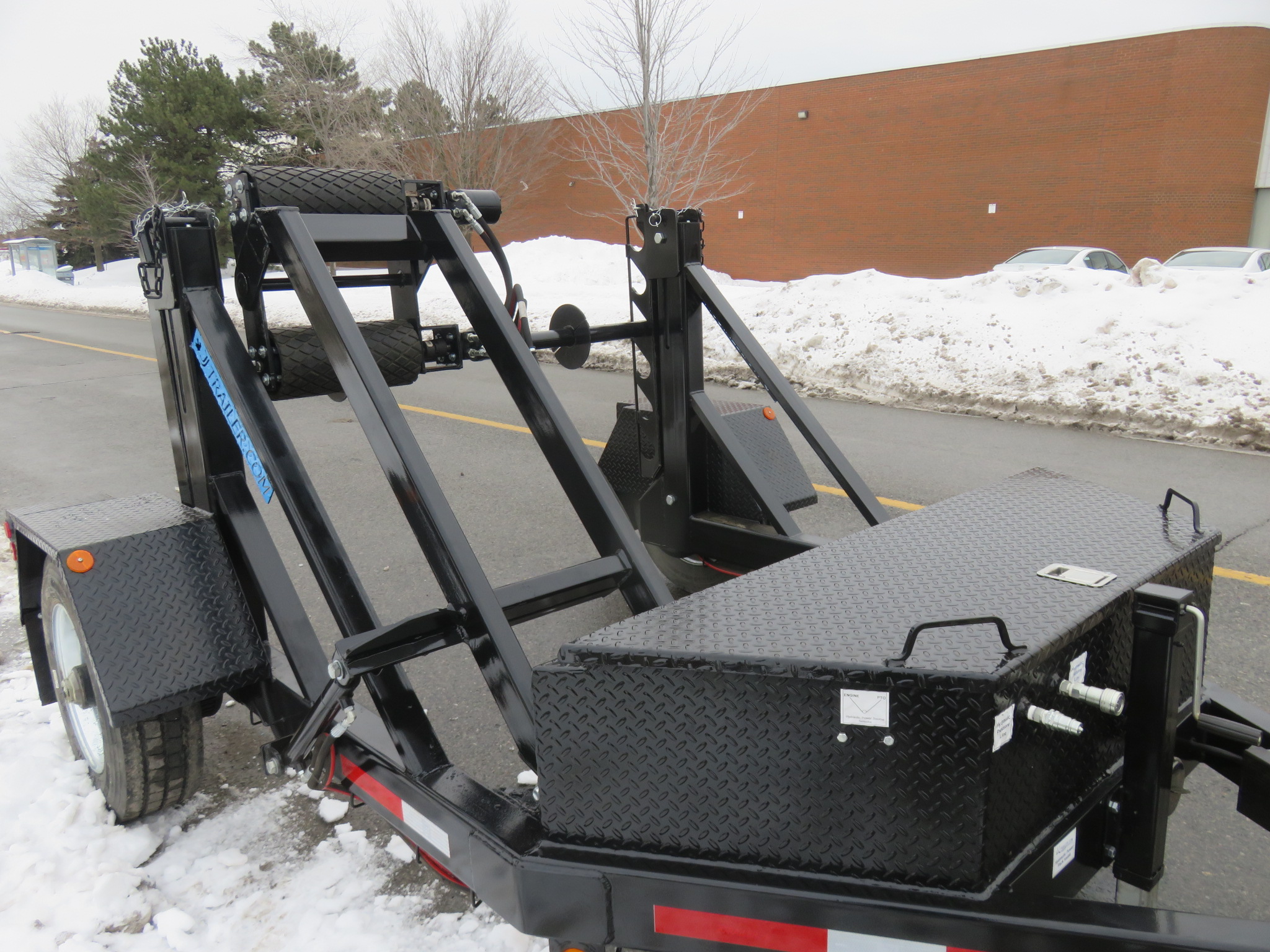

Enclosed Toolbox for pump and battery protection
8K Stub Axle, with Dexter 12" x 2" Electric Brakes
5500 LBS Reel Weight Capacity
Max. Reel Dimensions: 60" Wide x 98" DIA
2.5" Solid Reel Bar with Milled Clamping Surfaces
Heavy Duty Fenders
Reel Locking Collars
Grote Lighting System & Wiring Harness
Sandblasted Frame, Epoxy-primed and Polyurethane Gloss Black Topcoat

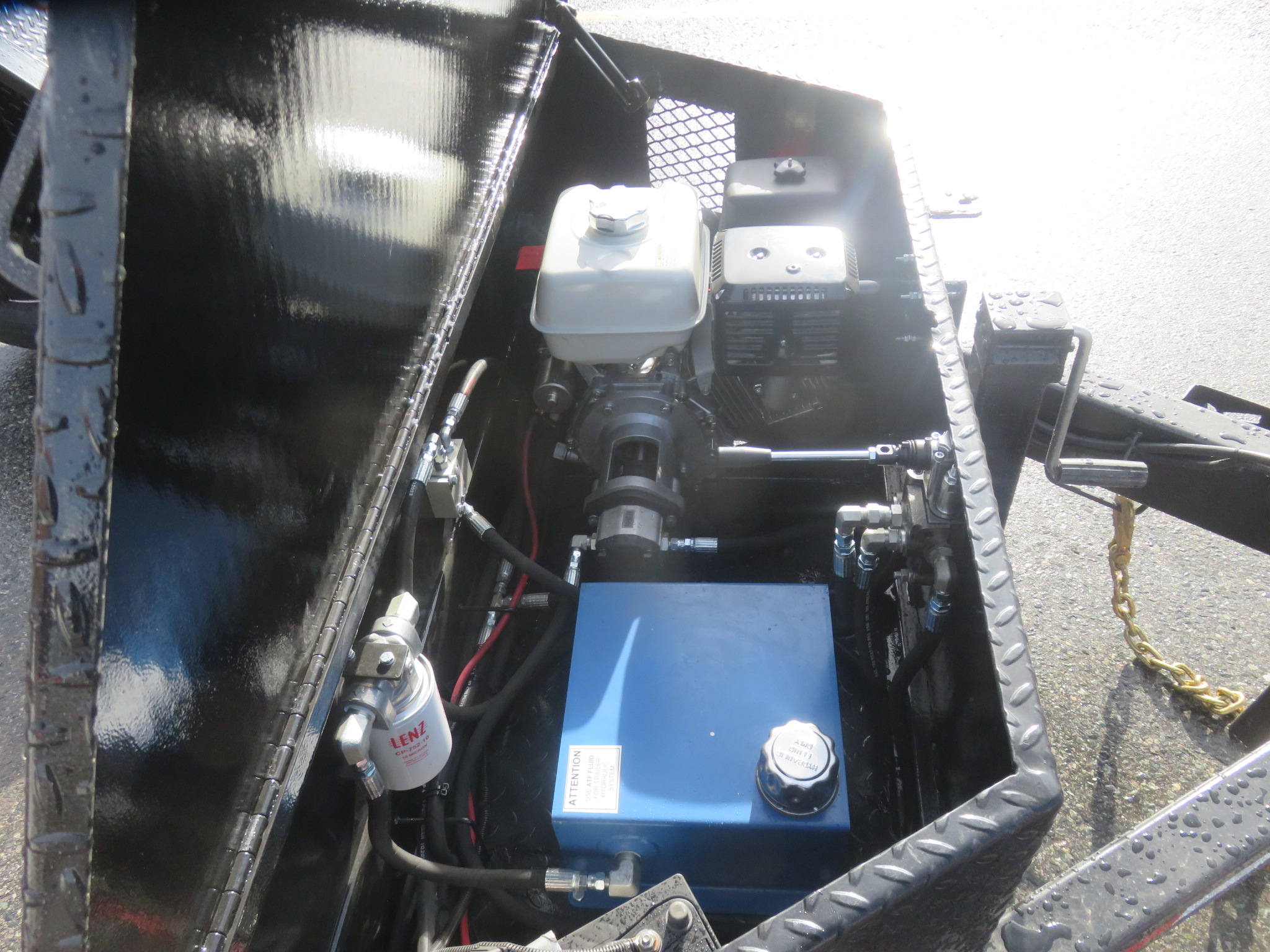

- Gas Engine Power Pack to Operate & Power Hydraulics
Manual Hand-Pump to Operate & Power Hydraulics

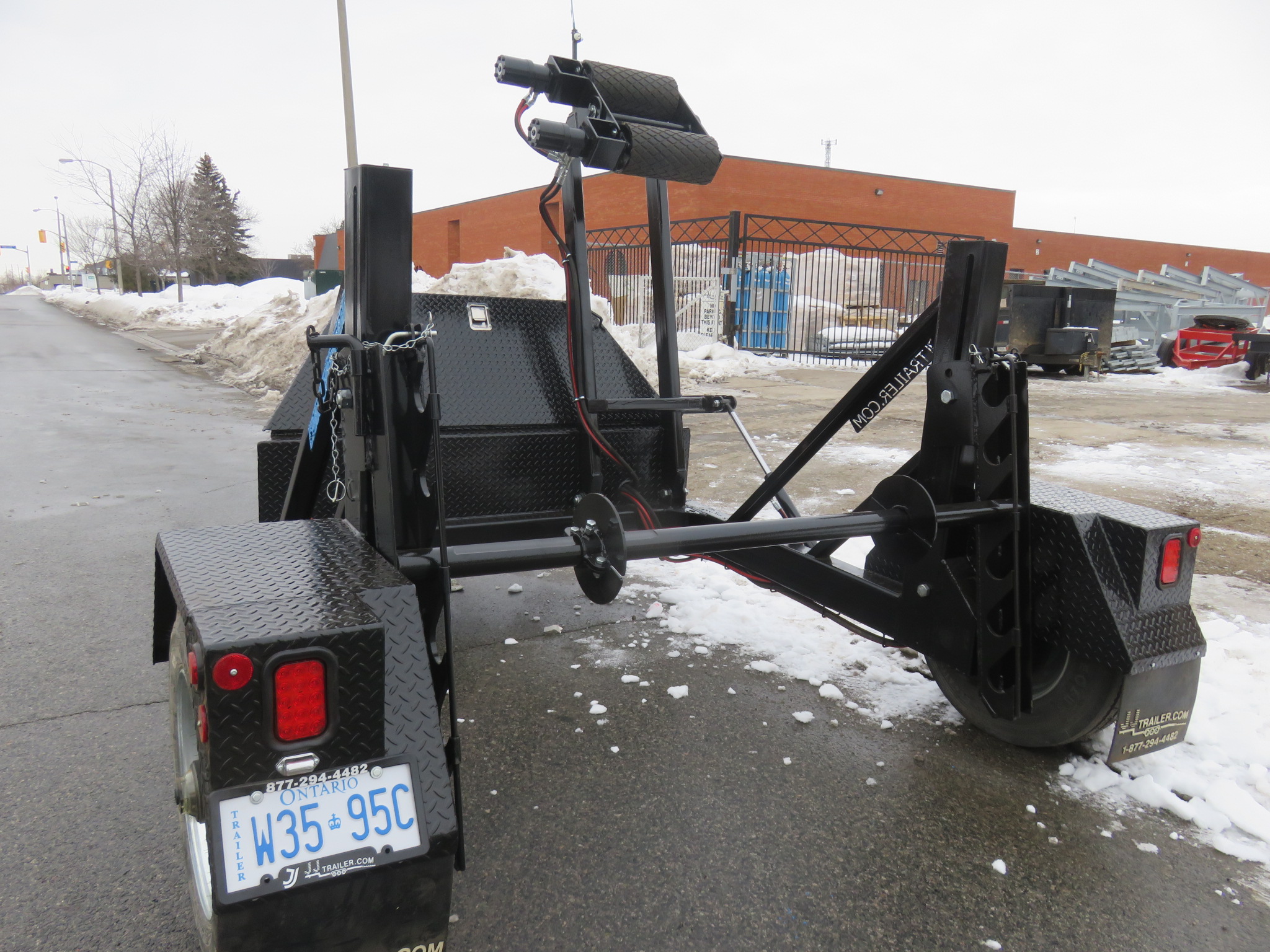

Double Vulcanized Rollers on Hydraulic Motors to Assist Reel Winding/Rewinding (YR-1R)
10K & 12K Stub Axle, for 7500 LBS Reel Weight Capacity
Extended Frame for 120” DIA Reels
Manual Reel Disc Braking Setup

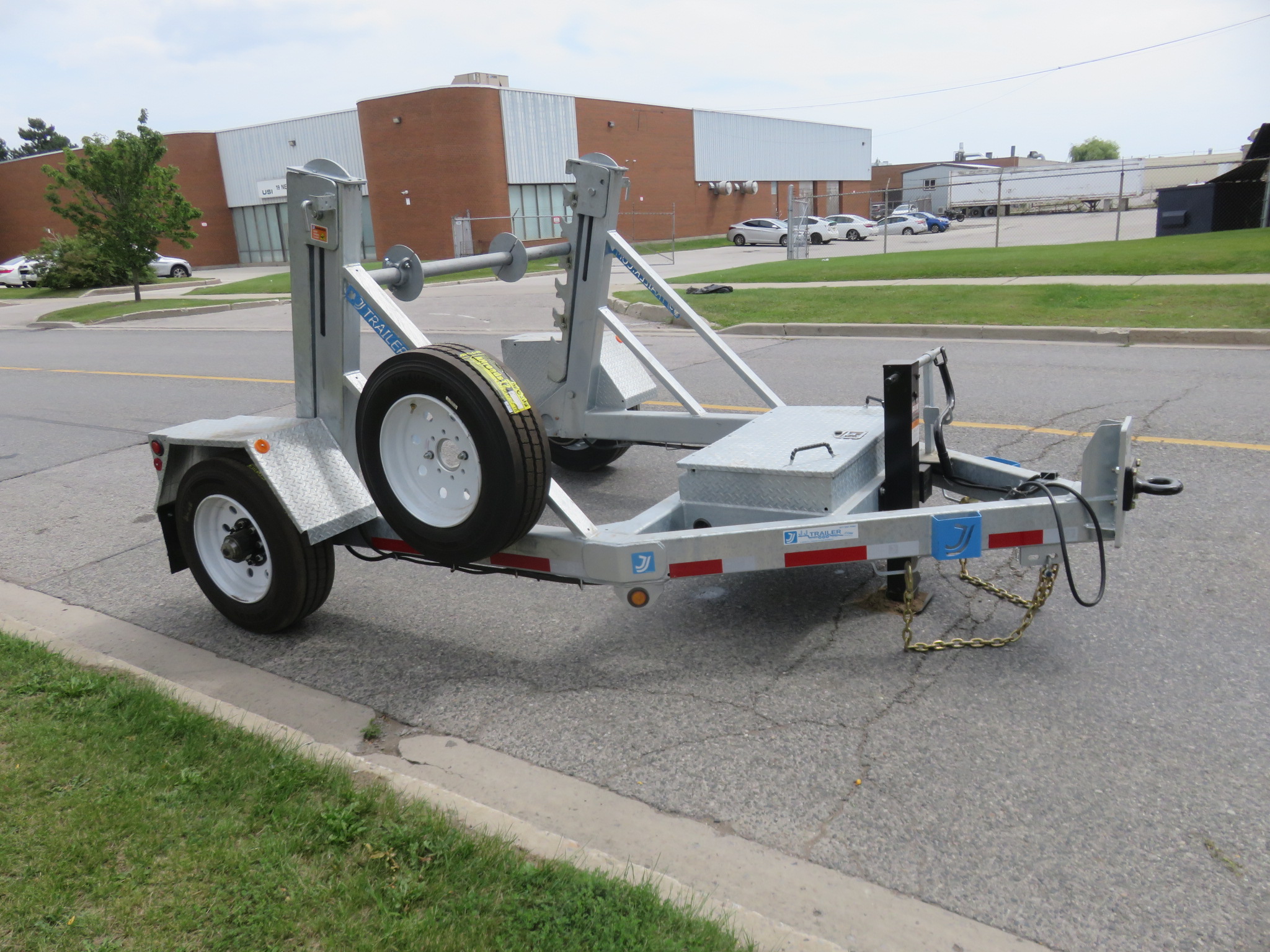

Spare Tire Holder and Spare Tire
Cone Holder
Any Colour Paint

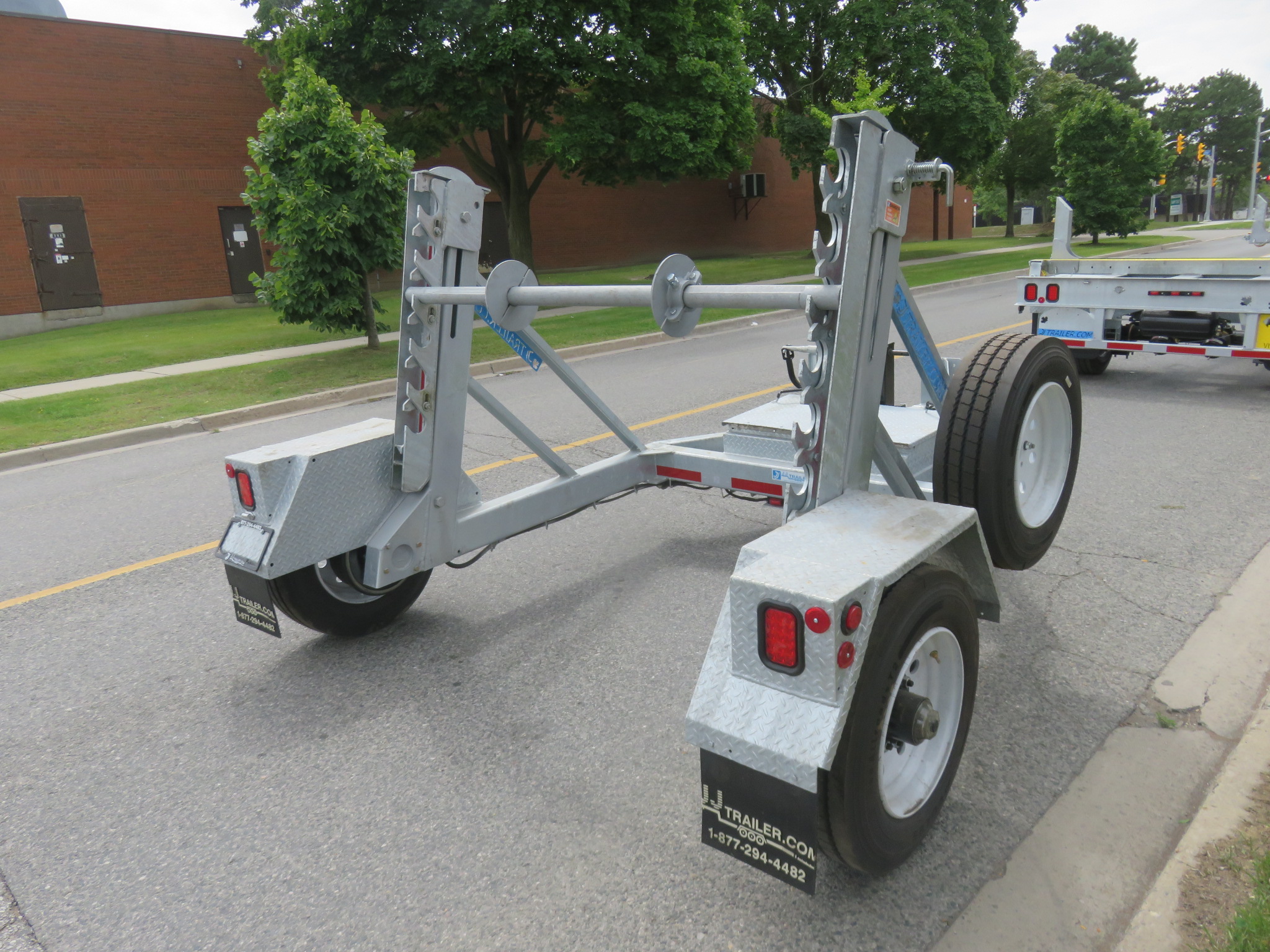

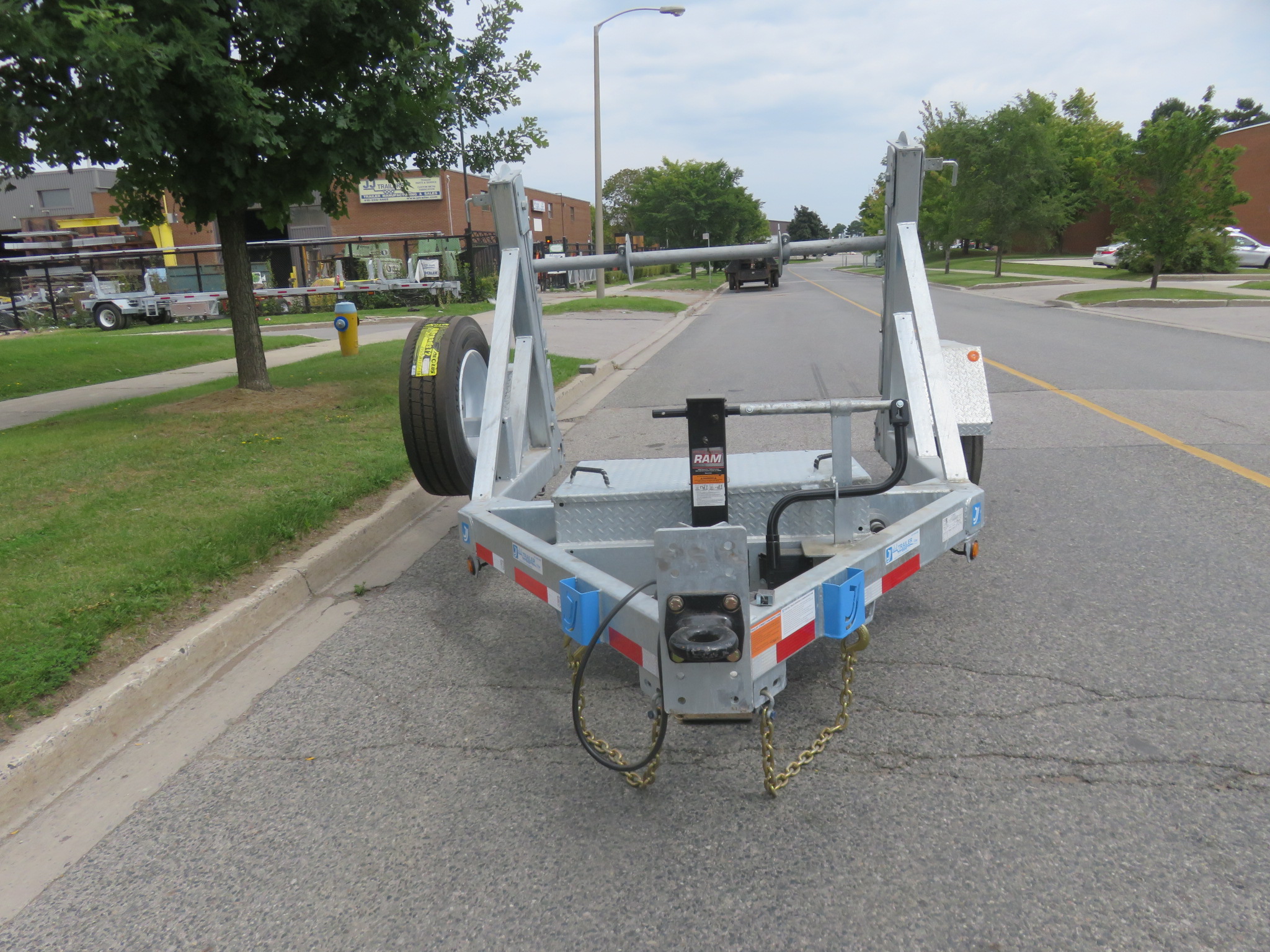

Galvanized Frame
Solar Panel for Battery Charging
Installed Trickle Charger for Battery Charging
Heavy Duty Jack
Hydraulic Jack
