YR-2R
Gallery
Specs & Upgrades
- Self-Loading Reel-Lifting Functionality
Dual Hydraulic lifting cylinders, operated by a remote-controlled battery and pump system (YR-2)

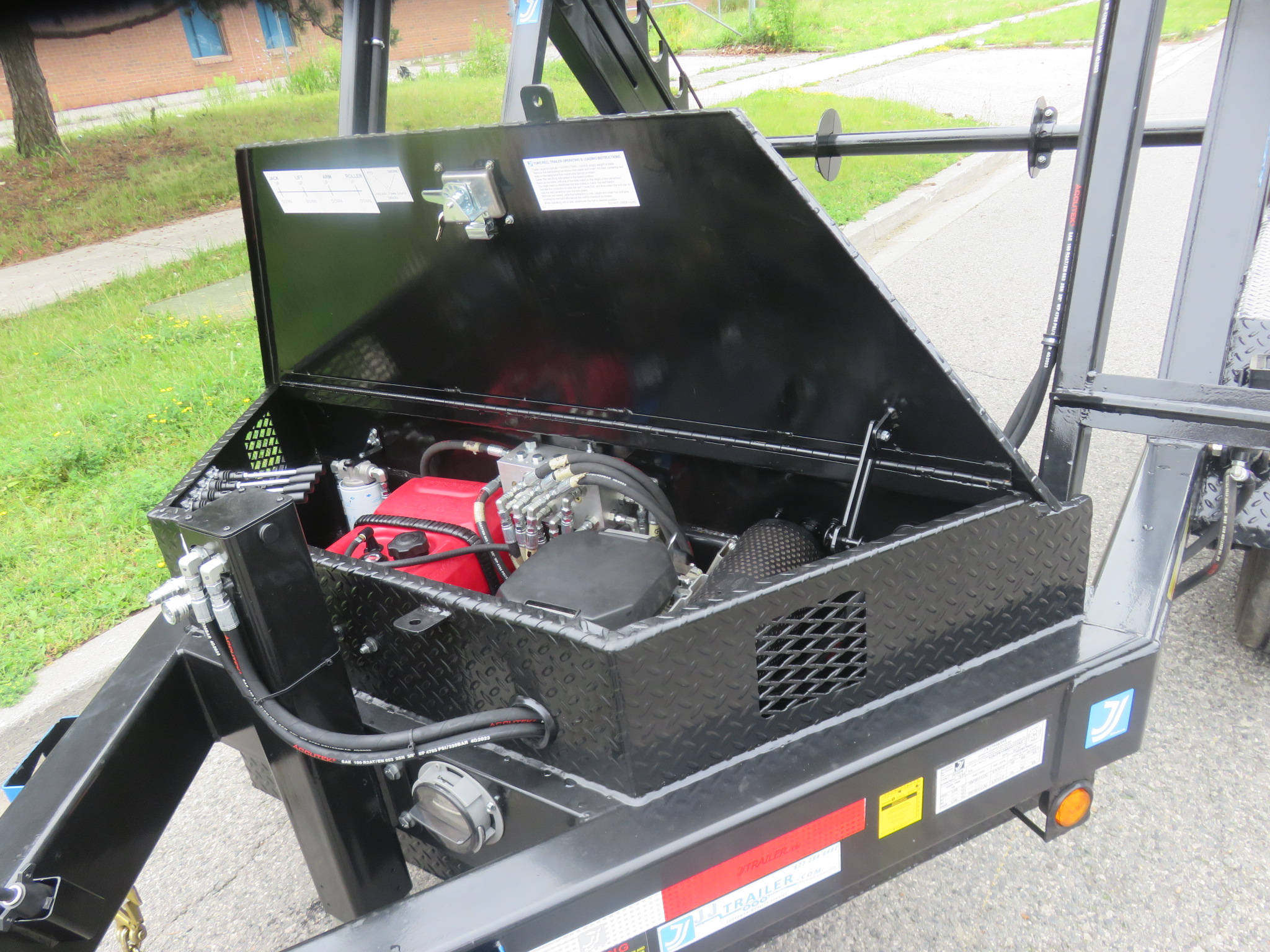

Gas Engine Power Pack to Operate & Power Hydraulics (YR-2R)

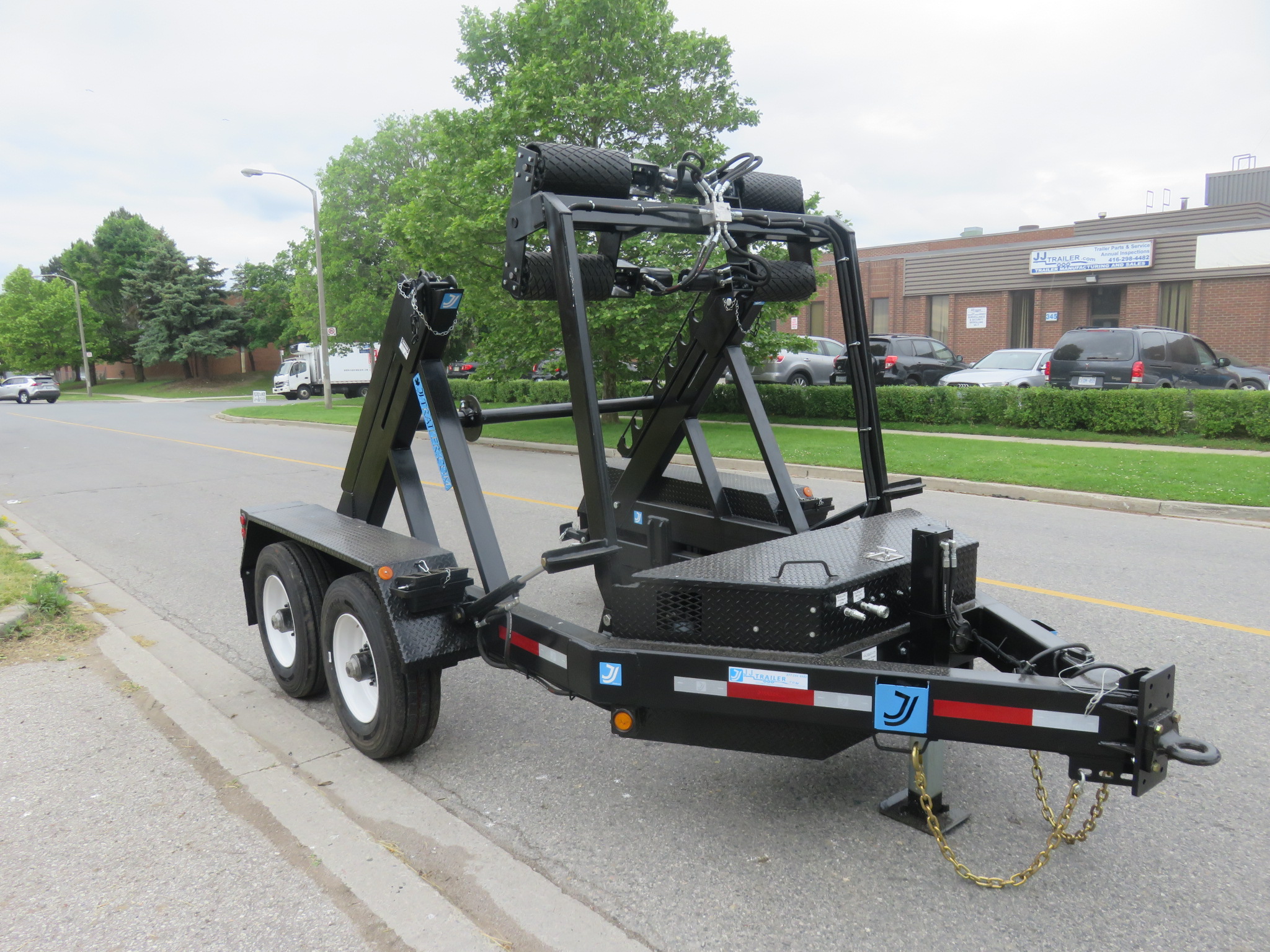

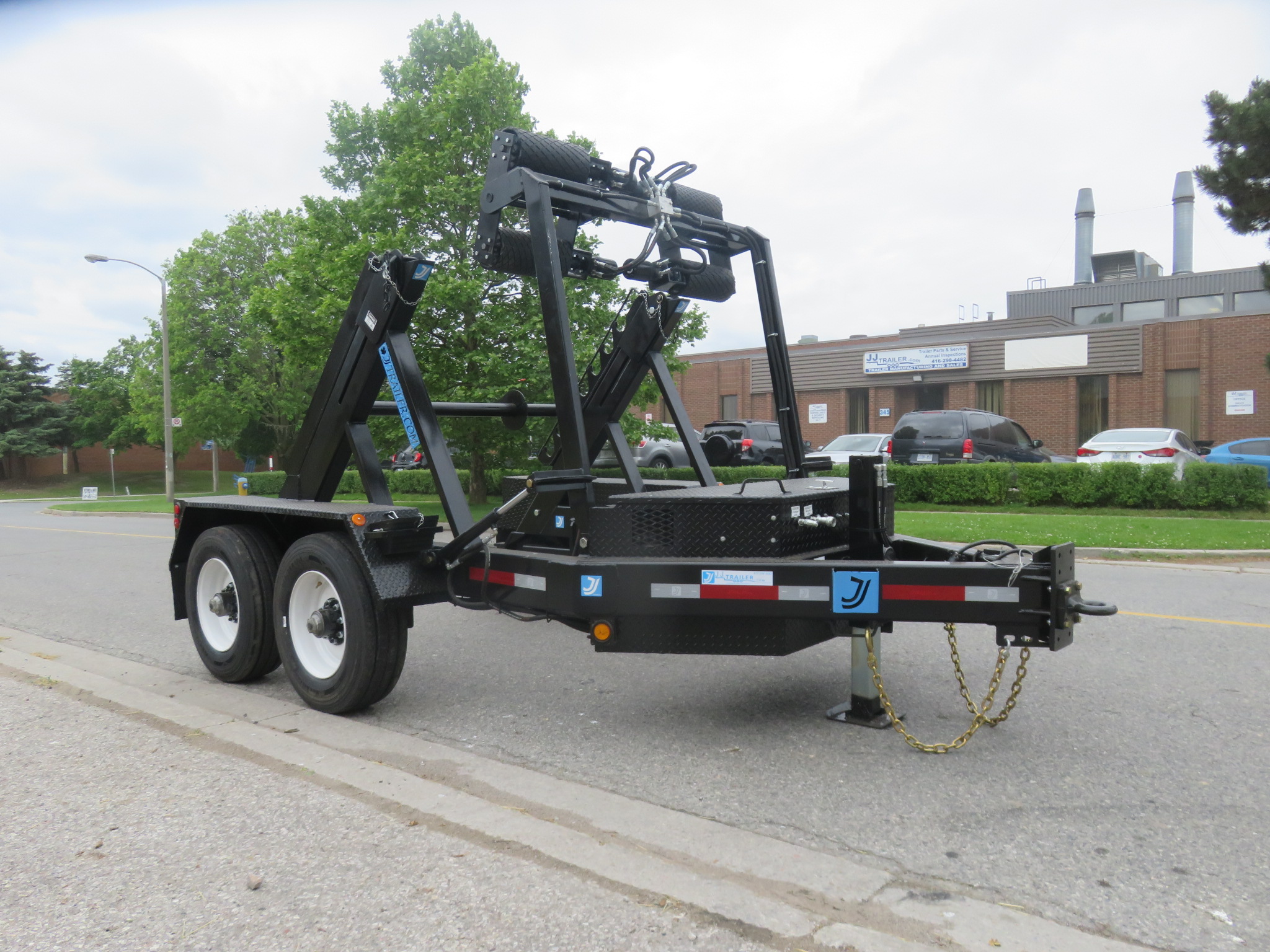

Quad Vulcanized Rollers on Hydraulic Motors to Assist Reel Winding/Rewinding (YR-2R)
Spring-Loaded Safety Locking Features
Enclosed Toolbox for pump and battery protection
Tandem 8K Axles on Walking Beam, with Electric Brakes
12,000 LBS Reel Weight Capacity

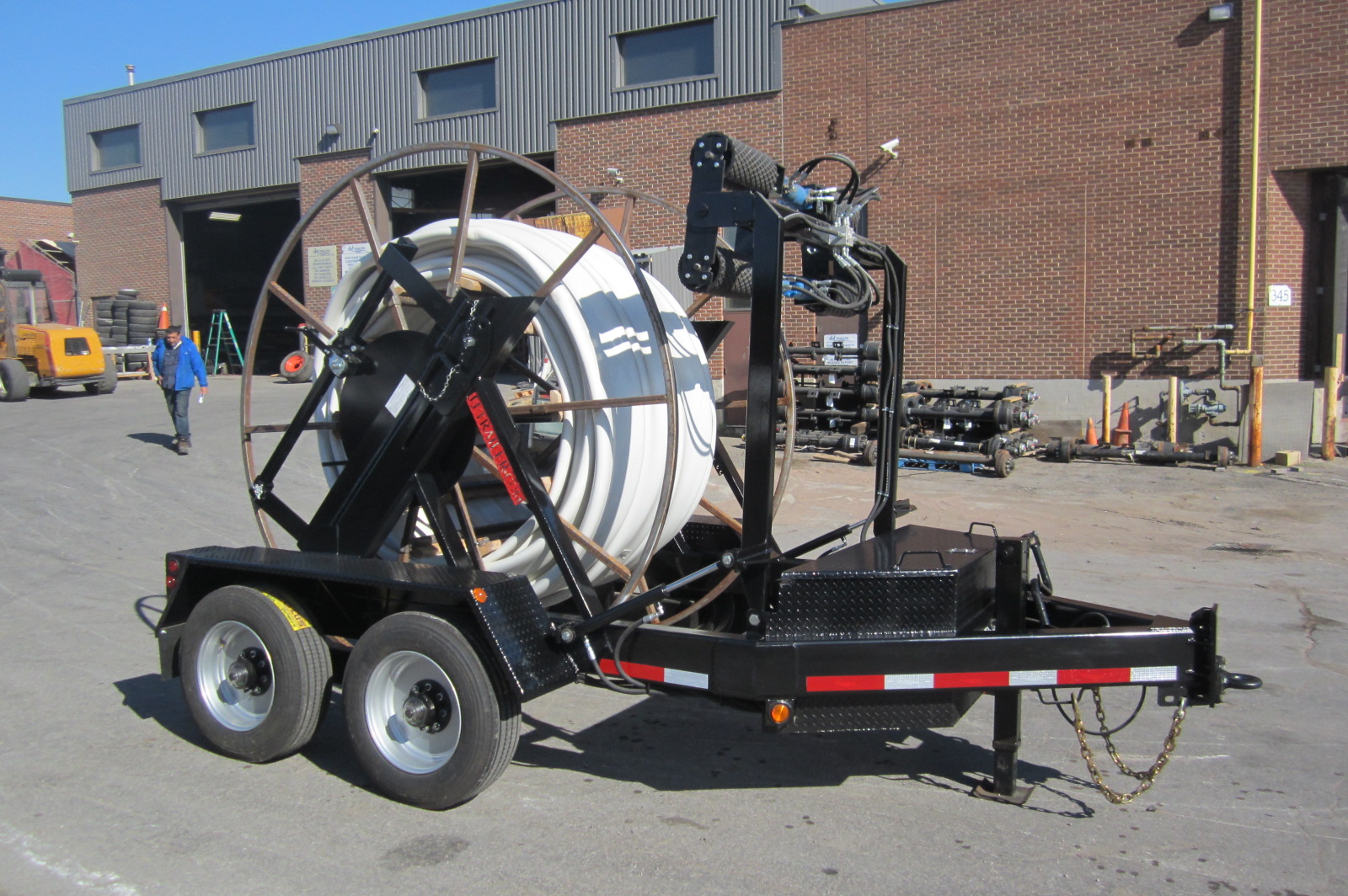

Max. Reel Dimensions: 60" Wide x 120" DIA
3" Solid Reel Bar with Milled Clamping Surfaces
Heavy Duty Fenders
Reel Locking Collars
Grote Lighting System & Wiring Harness
Sandblasted Frame, Epoxy-primed and Polyurethane Gloss Black Topcoat
- Gas Engine Power Pack to Operate & Power Hydraulics (YR-2)
Manual Hand-Pump to Operate & Power Hydraulics
10K & 12K Tandem Axle, for 16,000 & 20,000 LBS Reel Weight Capacity
Manual Reel Disc Braking Setup
Extra 2.5” Reel Bar with Mounting Location
Spare Tire Holder and Spare Tire
Cone Holder

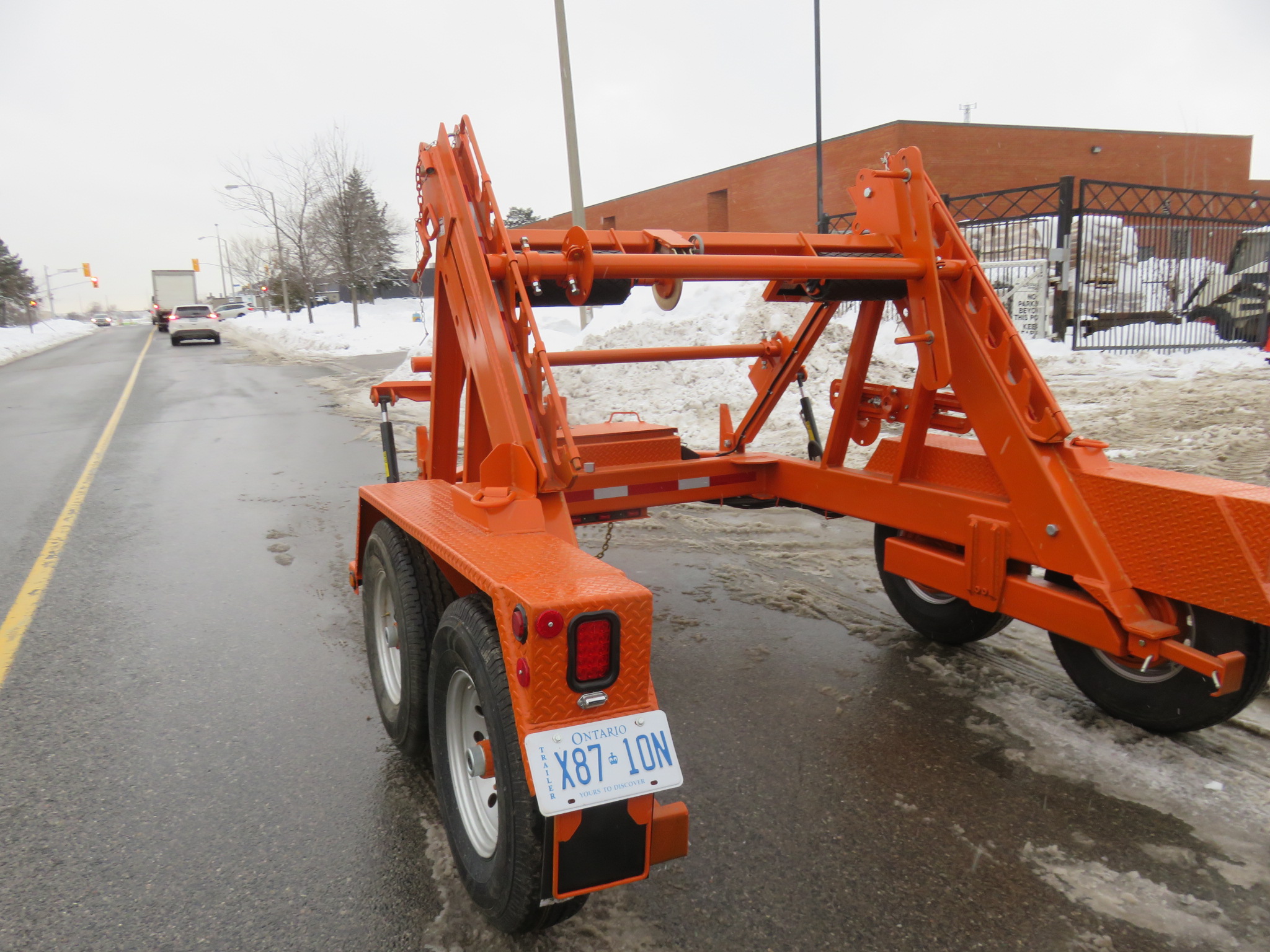

Any Colour Paint

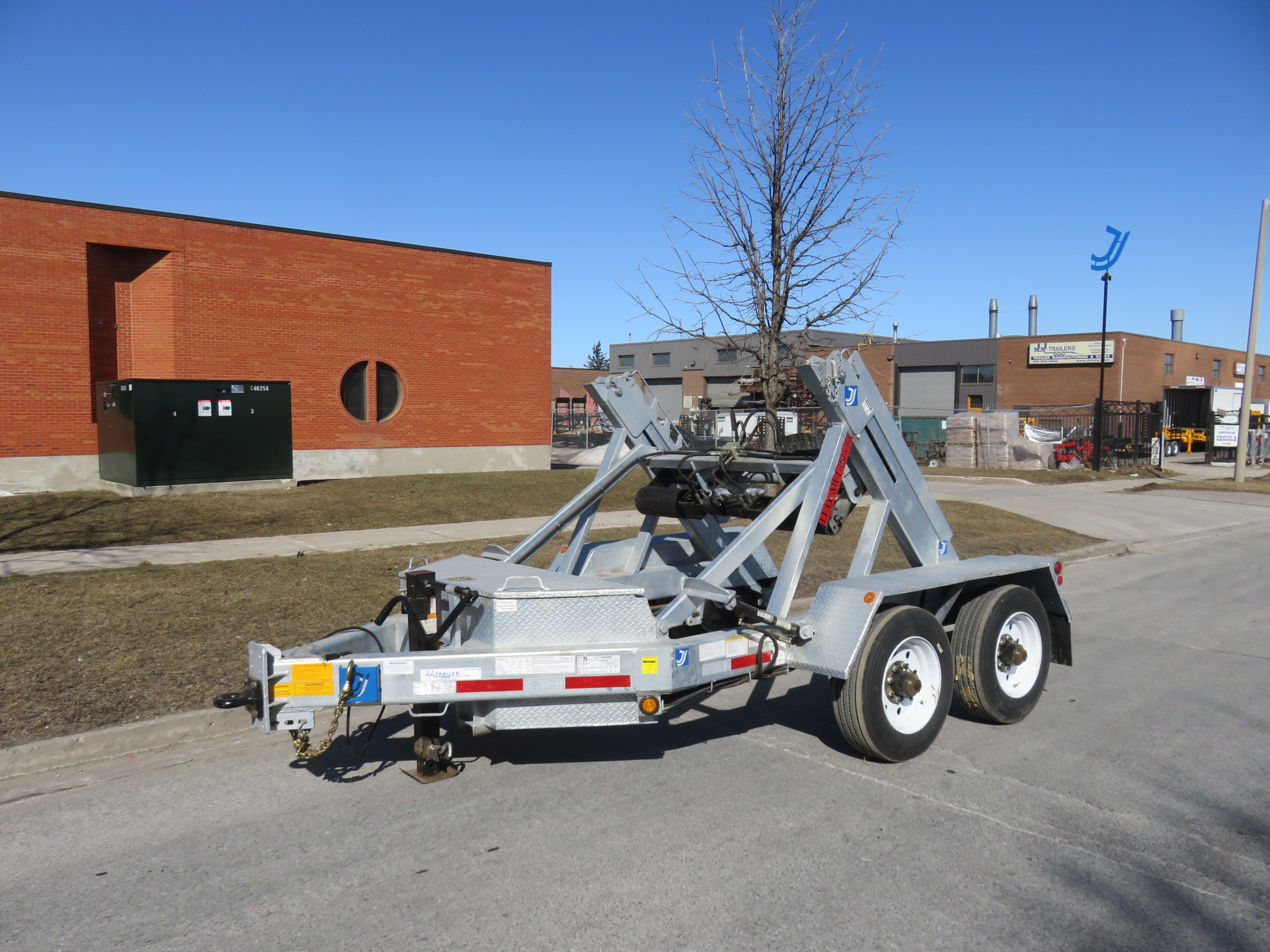

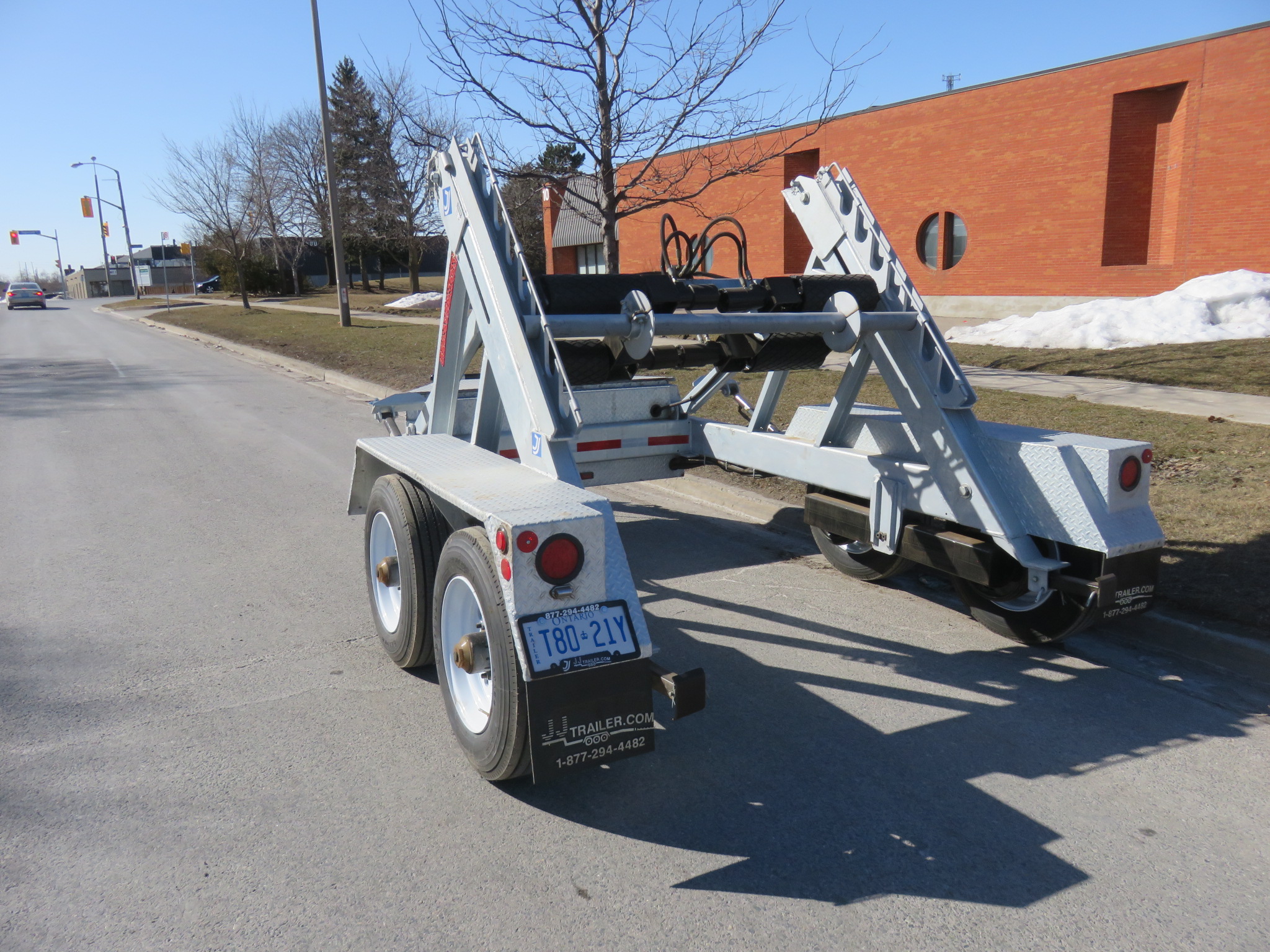

Galvanized Frame
Solar Panel for Battery Charging
Installed Trickle Charger for Battery Charging
Hydraulic Jack
