DD-4
Gallery
Specs & Upgrades
- Hydraulic Neck on Dual 8" Cylinders - Mechanical Neck Also Available
26' Deck on 54" Spread
QT-100 Fabricated I-Beams
Air-Operated Locking Gooseneck Pin
24" Standard Deck Height, 8" Ground Clearance
5-Position Cam Lock for Adjustable Front Ground Clearance

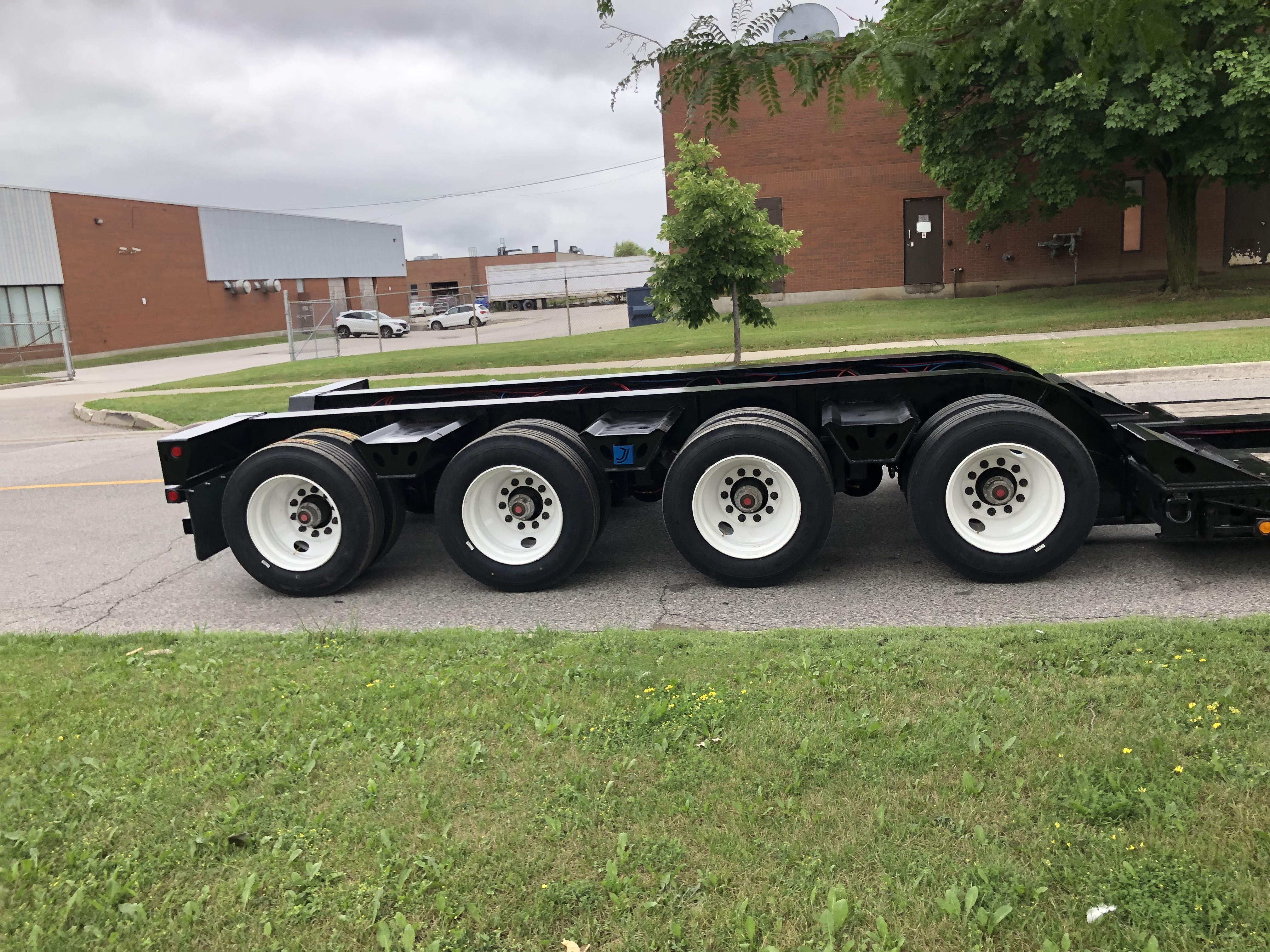

QuadIMT/Dexter Axles and Suspension
2 Built-in Storage boxes, Between Main Rails
Center Boom Well in Rear Bridge, with Hammer Plate
Deck Built with Positive Camber
Open Wheel Well Style
PTO Powered

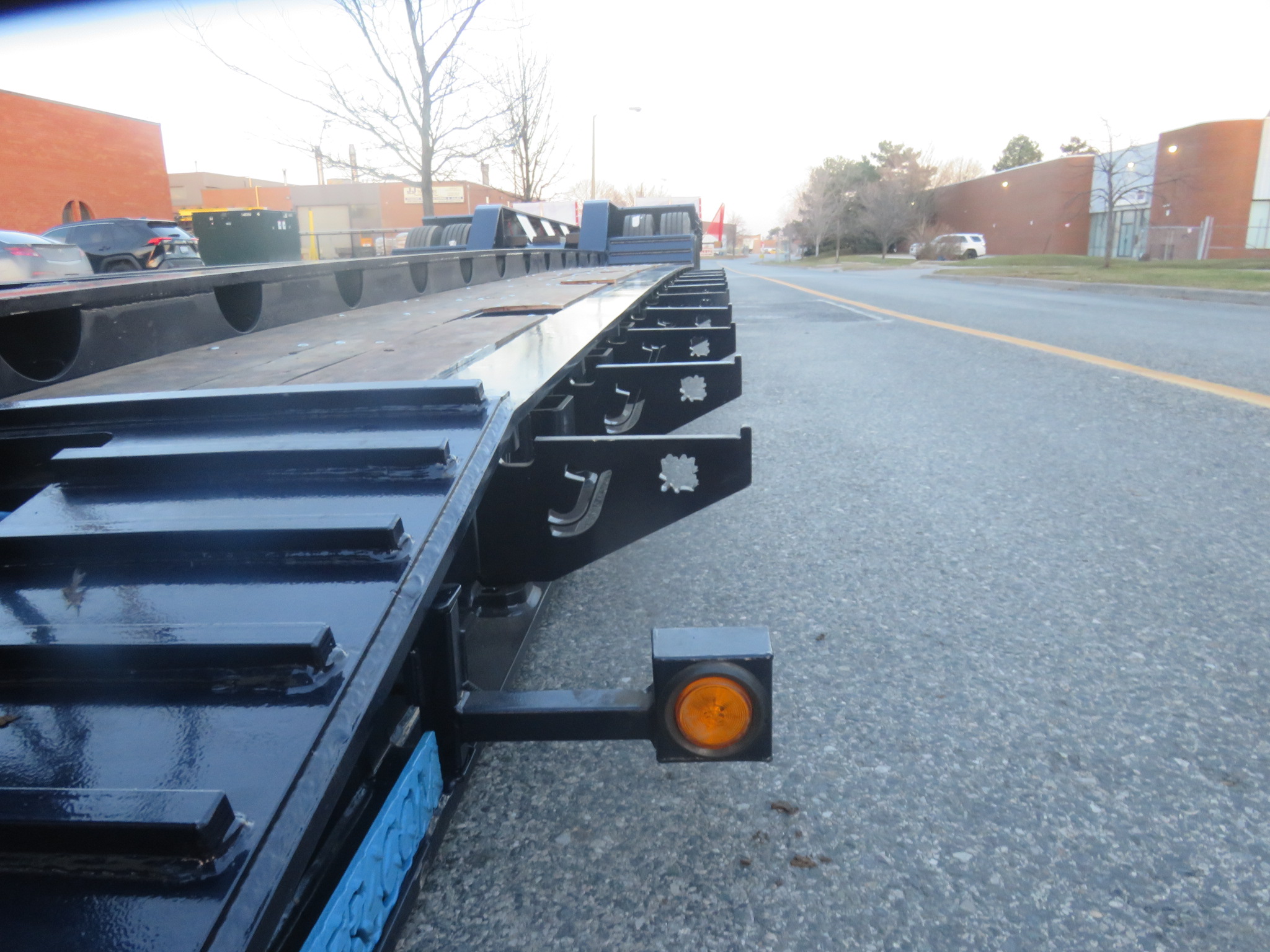

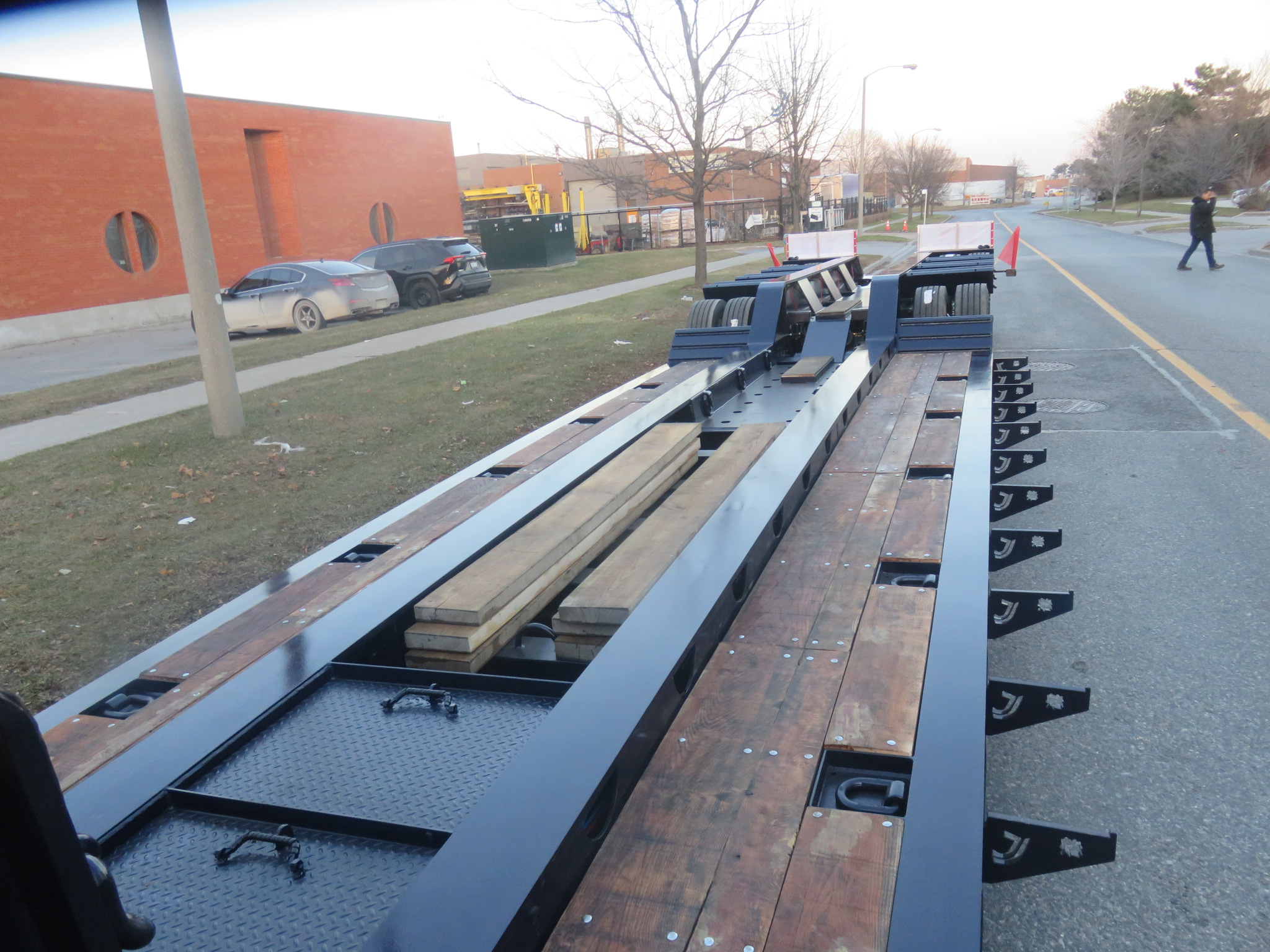

10" Flip-Out Outriggers Every 2', Comes with Flip-Out Extremity Marker Lights
Riding on 275/70R22.5 Continental Dual Wheels
Low Approach Angle
Rear Strobe Lights, with Accessory Battery and Switch
- 24’, 28’, and 30’+ Deck Length Options
22”, 20”, 18”, 16” Deck Height Options
9’, 9’6” or 10’ Wide Deck
Drop Side Build
Load-Bearing Deck Above Axles
Air-Lift Rear Axle
6’ Air-Operated Ramps to Upper Deck; Wood and Steel Cleat Options
Front Mechanical or Hydraulic Flip Extension
Front Flip Ramps
Aluminum Rims
Air Disc Brake
Deck-Mounted D-Rings
Steel Checkerplate Fenders on Gooseneck
Axle Grease Bank
Tire Inflation System
Hydraulic Power Pack, Fully Enclosed
Custom Build Requests Accepted
